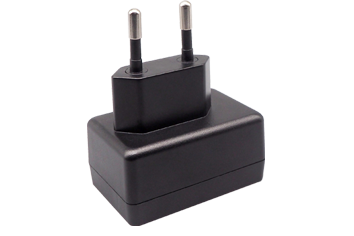

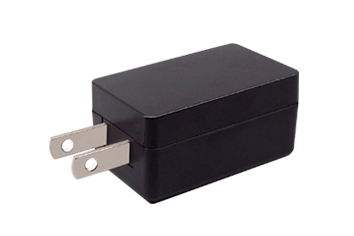

UME-12W series-B02 USB Type ( PSE/UL/CCC/CB/CE/PSB )
UME-B02 USB Type ( PSE/UL/CCC/CQC/CB/CE/PSB )、12W Max 20VA Max
☆100-240VAC Universal Input
☆Regulated Output with Low Ripple Noise
☆Private Label Marking Available
☆Modified and Custom Design Available
產(chǎn)品特點
|
Model No. |
AC Input Rating |
DC Output Rating |
|
UME-B02 USB |
90V~264V |
5.0V/0.5A 5V/1.0A 5V/2.0A |
|
Green Mode |
CEC, Energy Star Level VI, ErP Stage 2 & NRCan |
|
|
Voltage |
100-240 VAC |
|
|
Line Frequency |
50-60Hz +/-10% |
|
|
Current |
5.0A Max. |
|
|
Load Regulation |
± 5% (Typical) |
|
|
Ripple |
1~2% Vp-p Max. for Output Voltage@ Full Load ≤ 200(Vp-p)(mV) |
|
|
Transient Response |
0.5mS for 50% Load Change Typical |
|
|
Holdup Time |
10mS @ Full Load |
|
|
Protection |
Short Circuit Protection/ Over Voltage Protection/ Over Current Protection |
|
|
DC Cord |
22AWG / 20AWG / 18AWG |
|
|
Safety Approvals |
||
|
ForUK- CE / LPS |
ForUSA- UL / cUL / FCC / PSE / LPS |
|
|
ForChina- CCC / LPS |
ForEurope- CE / LPS |
|
|
Electrical |
||
|
Dielectric Withstand |
3,000 VAC Primary-Secondary |
|
|
Leakage Current |
0.25mA @ 2 Pin |
|
|
Efficiency |
Energy Star Level VI, ErP Stage 2, GEMS & NRCan Certified |
|
|
EMI Conduction&Radiation |
Compliance to EN55022 Class B |
|
|
Harmonic Current |
Compliance to EN61000-3-2,3 |
|
|
EMS Immunity |
Compliance to EN61000-4-2,3,4,5,6,8,11 |
|
|
MTBF |
300,000 Calculated Hours at 25°C, by Telcordia SR-332 |
|
|
Environmental |
||
|
Operaturing Temperature |
0 to +40°C |
|
|
Storage Temperature |
-40 to +80°C |
|
|
Relative Humidity |
Operating: 10 to 90% RH Storage: 10 to 90% RH |
|
|
Mechanical |
||
|
Case Dimension |
PSE/UL/CCC- 52x 32 x 25 (mm) |
|
|
Weight |
|
|
